Sports bar TV systems · bar digital signage
Sports bar TV systems, built for game day.
Commercial TV installation for bars, restaurants, and QSRs — game-day video walls, perimeter screens, back-bar digital menu boards, window and patio displays, all installed by licensed technicians and run from one CrownTV Dashboard. New York based, installing nationwide.
game wall viewing TVs bar signage
Scope
This page is for the bar's screen system: game walls, TVs, signage, and install.
Running a kitchen-led program too — counter menu boards, drive-thru displays, pickup screens, and multi-location QSR operations? That full program lives on the restaurant digital signage hub.
In the field
What is a sports bar TV system?
A sports bar TV system is the coordinated screen program a bar runs on game day: commercial-grade displays around the room, a video wall or large-format screen as the hero moment, and a bar digital signage layer — menus, drink specials, match schedules, promos — managed per screen from one dashboard. CrownTV ships the displays, mounts, media players, professional installation, and the CrownTV Dashboard as one project; your game feeds keep coming from the TV provider you already use.
- Game-day hero wall — 2×2 or 3×3 video wall, or a single 98″ large-format display.
- Perimeter viewing TVs sized to sightlines, mounted clean with no visible cabling.
- Bar digital signage — back-bar menu boards, drink specials, schedules, and promos that change by daypart from the Dashboard.
World Cup 2026 is on US screens right now — six weeks of matches through the July 19 final at MetLife. An after-hours install can have a bar's screen program live before the knockout rounds.
Trusted by leading brands since 2012
A sports bar lives and dies by its screens. Customers pick the bar with the better wall, stay longer when they can see a screen from every seat, and spend more when the specials board changes the moment happy hour starts. Most bars get there with a patchwork: consumer TVs that wash out in window glare, HDMI cables stapled along the crown molding, and a chalkboard doing the work a screen should. CrownTV ships the whole sports bar TV system as one contract — commercial displays, video wall, mounts, media players, bar digital signage software, professional installation, and support — the same stack already running F&B screen programs for Pressed Juicery, Gourmet Deli, and Kaffe.

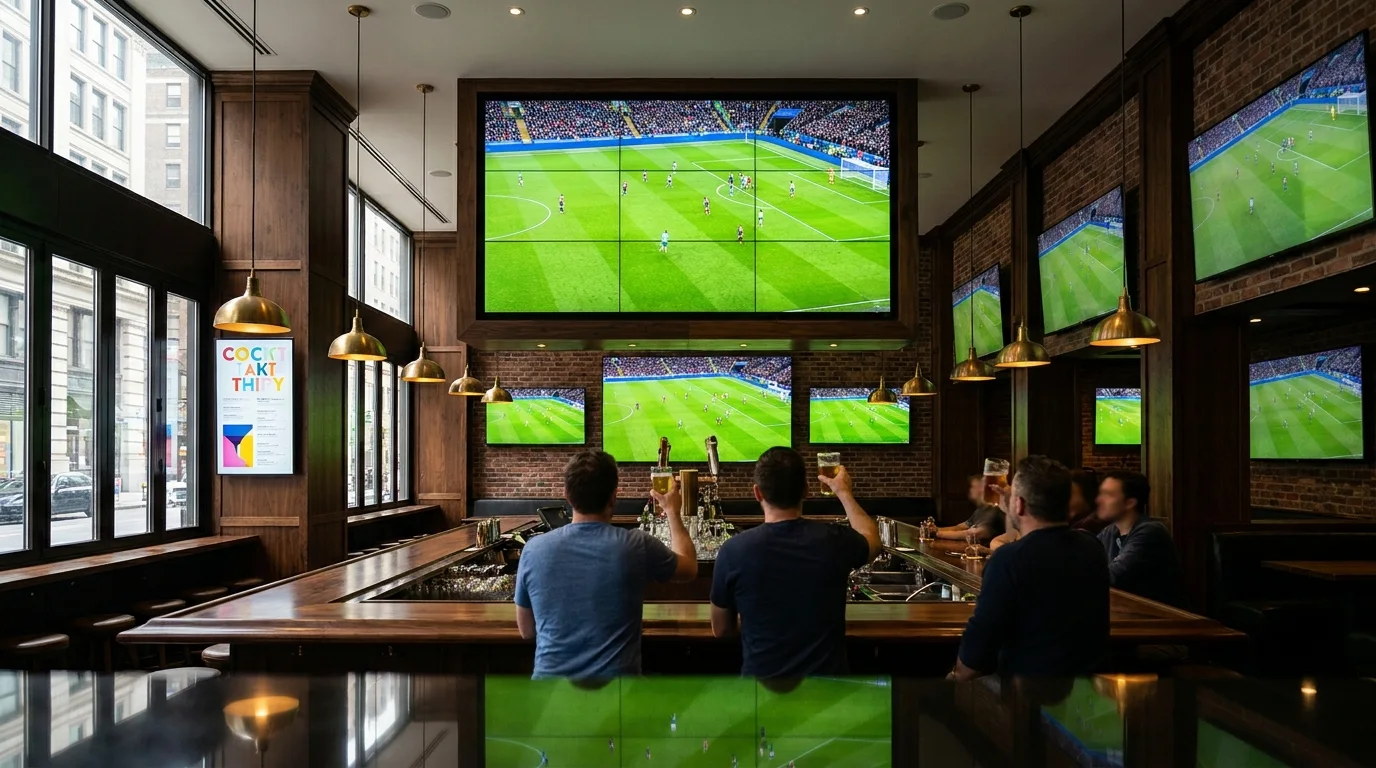

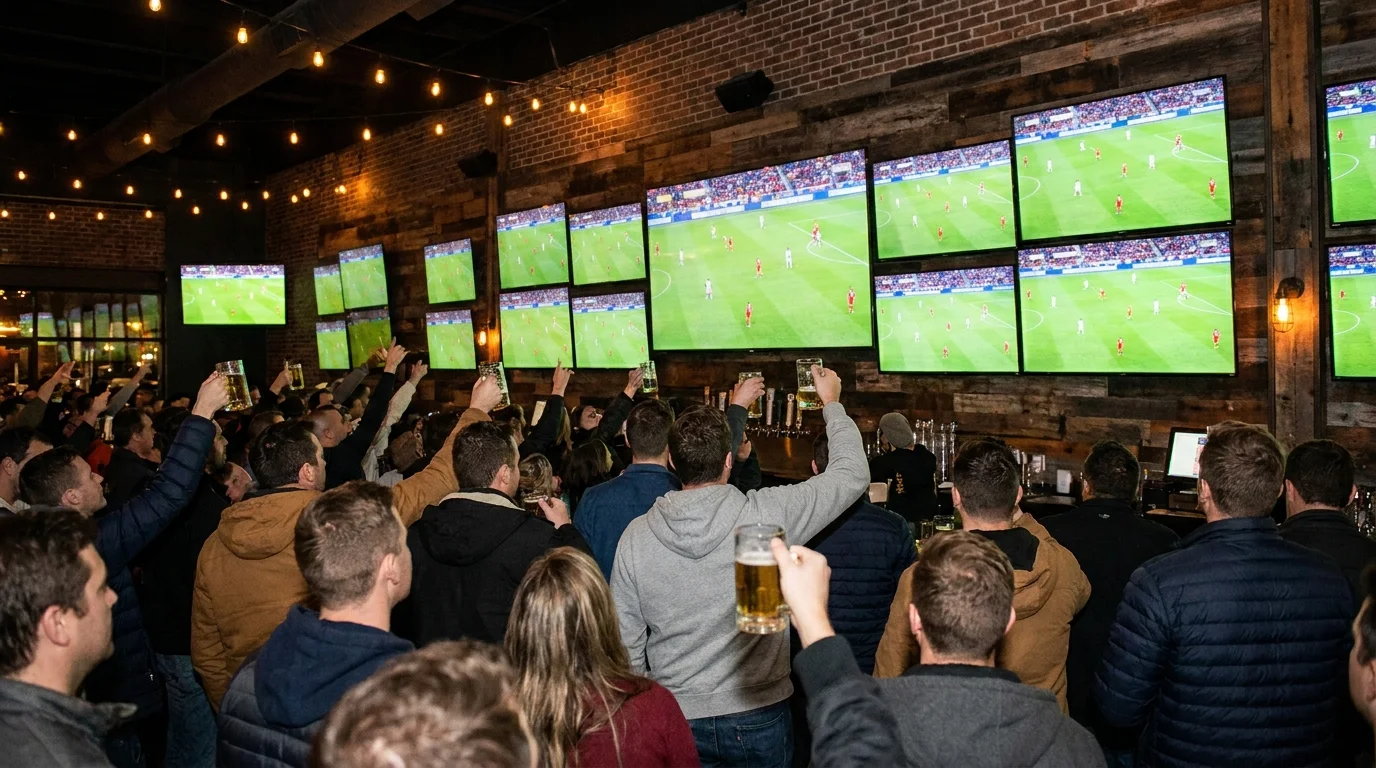

The game wall
One hero wall changes how the whole room watches.
A 2×2 wall of 55″ tiles reads as a single ≈110″ canvas; a 3×3 reads at ≈165″. Both run full-bleed match coverage on the wall while the perimeter screens carry the other fixtures — and the moment the final whistle blows, the wall flips to the specials board from the Dashboard.
2 × 2
The classic
3 × 3
Flagship moment
1 × 3
Reception strip
Custom
Irregular tile
Why bars are replacing the consumer-TV patchwork
Three things that change when the bar's screens run as one commercial system instead of a collection of TVs.
Commercial panels, not living-room TVs
Consumer TVs are rated for a few hours a day in a dim living room. A bar runs screens 12–16 hours a day under bright ambient light, often behind storefront glass — which is why the patchwork looks washed out by year two and the warranty doesn't cover commercial use at all. Commercial displays are built for 16/7 duty, hold 500-nit brightness with non-glare panels, and carry commercial warranties that actually apply to a bar.
The signage layer earns money between whistles
Game feeds fill the match window; the signage layer sells everything around it. Drink specials that flip at 4pm sharp, a tap list that updates when a keg kicks, the week's fixture schedule by the door, a late-night menu after the match — all scheduled once in the CrownTV Dashboard and pushed per screen, per daypart, without anyone touching a remote.
Installed like a flagship, not a Saturday project
Licensed, insured technicians mount every panel, route cabling inside the wall, calibrate the video wall, and configure the system — on an after-hours schedule so the bar never loses a service. It's the same install discipline CrownTV brings to flagship retail: the screens read as architecture, not equipment.
Day-part schedule
One Dashboard, four dayparts, zero remotes
The signage layer flips itself. Schedule it once and the bar's screens follow the day automatically.
Happy hour
- Drink specials at 4:00 sharp
- Tap list + prices
- Tonight's matches by the door
Game time
- Hero wall on the main match
- Perimeter screens on other fixtures
- Halftime promo loop
Late night
- Late-night menu
- Next match-day promo
- Event + private-hire card
Build the layout once. Point each block at hours of the day. The dashboard rotates the menu automatically — no morning shift swap, no manual midweek adjustment, no missed transition.
Consumer-TV patchwork vs. a CrownTV sports bar TV system
What changes when the bar's screens run as one program from one dashboard.
Patchwork of consumer TVs
CrownTV sports bar TV system
Consumer panels wash out under bar lighting and die early on 12-hour days — and commercial use voids the warranty.
Commercial 4K panels rated 16/7 with non-glare 500-nit screens, covered by commercial warranties and remote monitoring.
Screens by the window are unwatchable on a sunny afternoon — exactly when the big match kicks off.
High-brightness window-series (3,000+ nits) and outdoor-series (3,500+ nits, IP56) panels stay readable in direct sun.
HDMI spaghetti behind the bar; one bumped cable mid-match and a section of the room goes dark.
Professional commercial TV installation — in-wall cable routing, labeled runs, clean mounts, every input tested before opening.
Specials live on a chalkboard; happy-hour pricing starts whenever someone remembers the eraser.
Bar digital signage flips by schedule — happy hour at 4:00 sharp, match-day promos at kickoff, late-night menu after the final whistle.
Changing what's on a screen means hunting for the right remote during a packed service.
Per-screen content control from the CrownTV Dashboard on a laptop or phone — the signage layer changes in seconds.
A dead screen on a Saturday gets discovered by a customer mid-match.
Remote device monitoring catches an offline panel before the room does; support runs on a 4-business-hour response SLA.
Three locations means three different setups, three remotes nobody can find, and three versions of the menu.
Every location on one Dashboard — group promos pushed centrally, per-site specials owned locally, one brand standard everywhere.
The same stack already runs bar and F&B programs on CrownTV
Real installs, named with permission. The sports bar program runs on the same displays, players, and Dashboard.
Hotel restaurant & bar
Back-bar digital menu board program in a hotel F&B outlet — drink list and daypart menus running on commercial panels, managed from the same Dashboard the property uses across its screens.

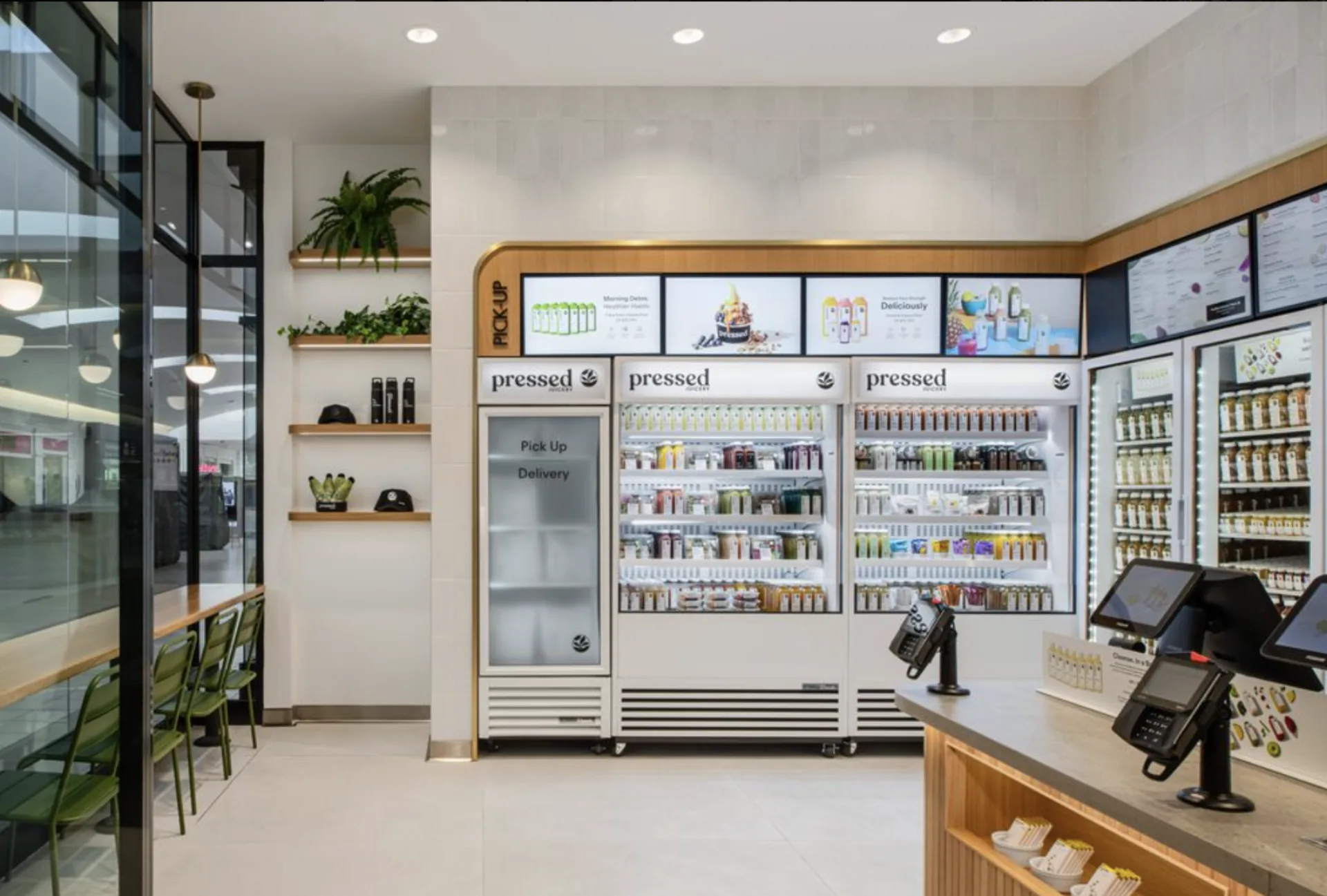

Pressed Juicery
Multi-location menu board and promo-screen program, live since 2021 — the per-screen scheduling and multi-site control model a bar group runs is exactly this stack.

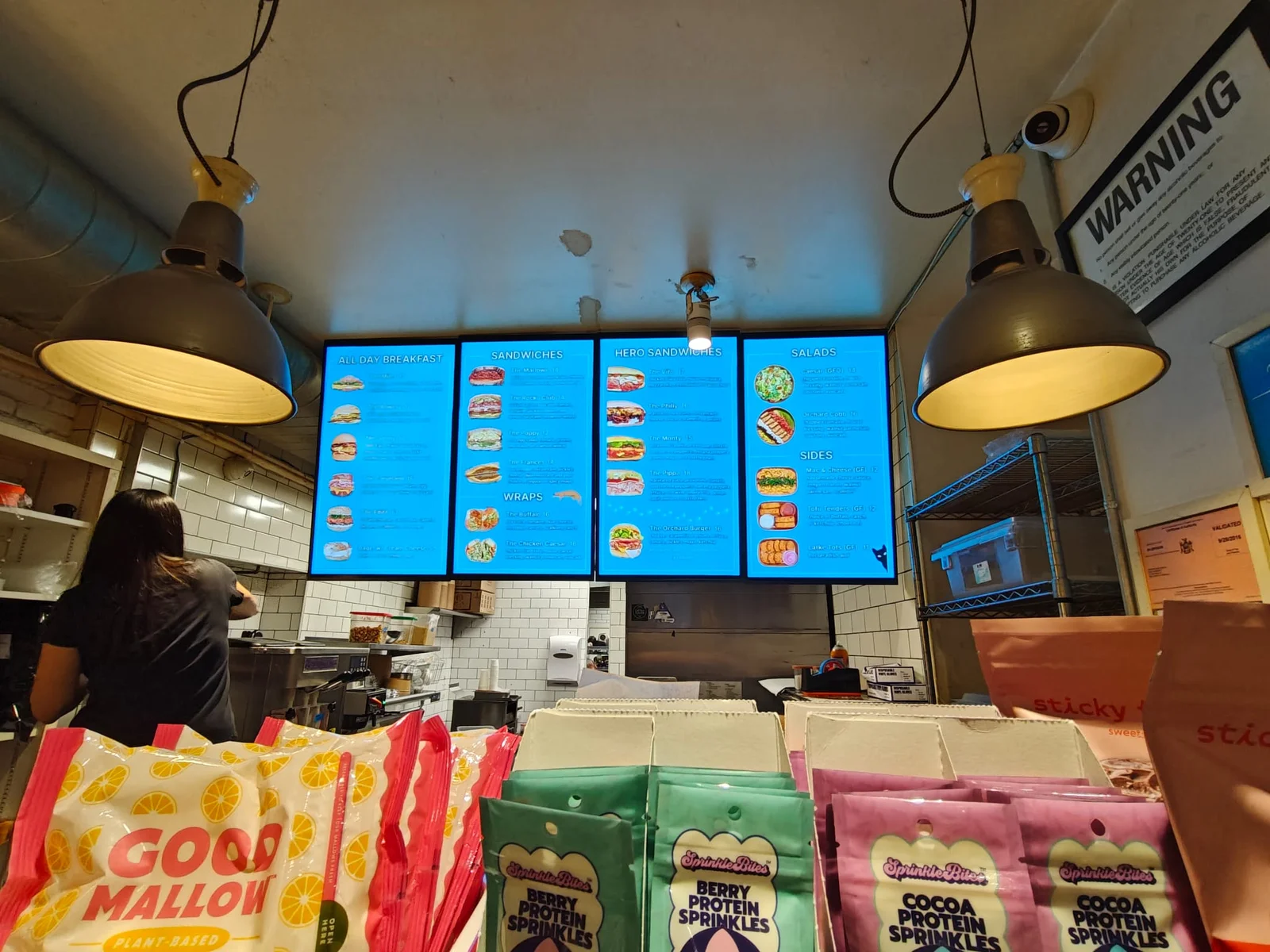

Gourmet Deli
Four-screen menu wall over an active NYC service line — bright commercial panels, clean installation in a working food-service environment, updated from the Dashboard.
Kaffe
Multi-location café program with day-parted menus and seasonal rotation — the same daypart engine that flips a bar from lunch board to happy hour to match night.
Match the panel to the position
Six placements cover almost every bar and restaurant screen program we ship. Driven by viewing distance, ambient light, and duty cycle.
| Environment | Spec target | Recommended panel |
|---|---|---|
| Game-day hero wall | 24/7 video-wall duty / 1.7mm bezel | Video-wall tiles 55″ — 2×2 (≈110″) or 3×3 (≈165″) |
| Single-screen hero | 500 nits / 16/7 duty / landscape | Samsung 98″ QM-series large-format 4K |
| Perimeter viewing TVs | 500 nits / 16/7 duty / landscape | Commercial 4K 55″ or 65″ |
| Back-bar menu boards | 500 nits / 16/7 duty / landscape or portrait | Commercial 4K 43″–55″ |
| Storefront window screens | 3,000+ nits / high-brightness | Window-series 46″–75″ |
| Patio + rooftop TVs | 3,500+ nits / IP56 weather-rated | Outdoor-series 46″–75″ |
Sports bar TV system pricing — installed
Representative installed ranges, consistent with comparable CrownTV screen programs. Hardware, mounts, media players, install labor, content commissioning, and one-year CrownTV Dashboard included.
Neighborhood bar · 4–6 screens
$9,500 – $18,000 installed
Perimeter viewing TVs plus a back-bar menu board. Mounts, in-wall cabling, media players, Dashboard setup, and launch training.
Full bar program · 8–14 screens
$22,000 – $45,000 installed
Perimeter TVs, back-bar signage, window screen, and specials loop across the room — one Dashboard, per-screen scheduling.
Game wall add-on · 2×2 or 3×3
$16,000 – $36,000 installed
Narrow-bezel video wall as the hero moment — tiles, wall-spec mounting, calibration, frame-accurate sync, canvas content.
Bar & restaurant group · multi-site
Custom-quoted
Standardized screen kit per location, wave-by-wave rollout, group-level Dashboard with per-site permissions, remote monitoring.
Every bar quote is site-scoped — screen count, wall construction, and cable paths move the number. Game-feed sources (cable / satellite / streaming receivers) stay on your existing provider account. Quote SLA: 4 business hours, Mon–Fri 9am–6pm ET.
Best for
- • Sports bars and pubs — game-day walls and perimeter viewing TVs
- • Restaurant bar areas — a game screen program beside the dining room
- • Breweries and taprooms — taproom TVs plus rotating tap-list boards
- • Hotel bars and lobby bars — brand-grade screens on hospitality duty cycles

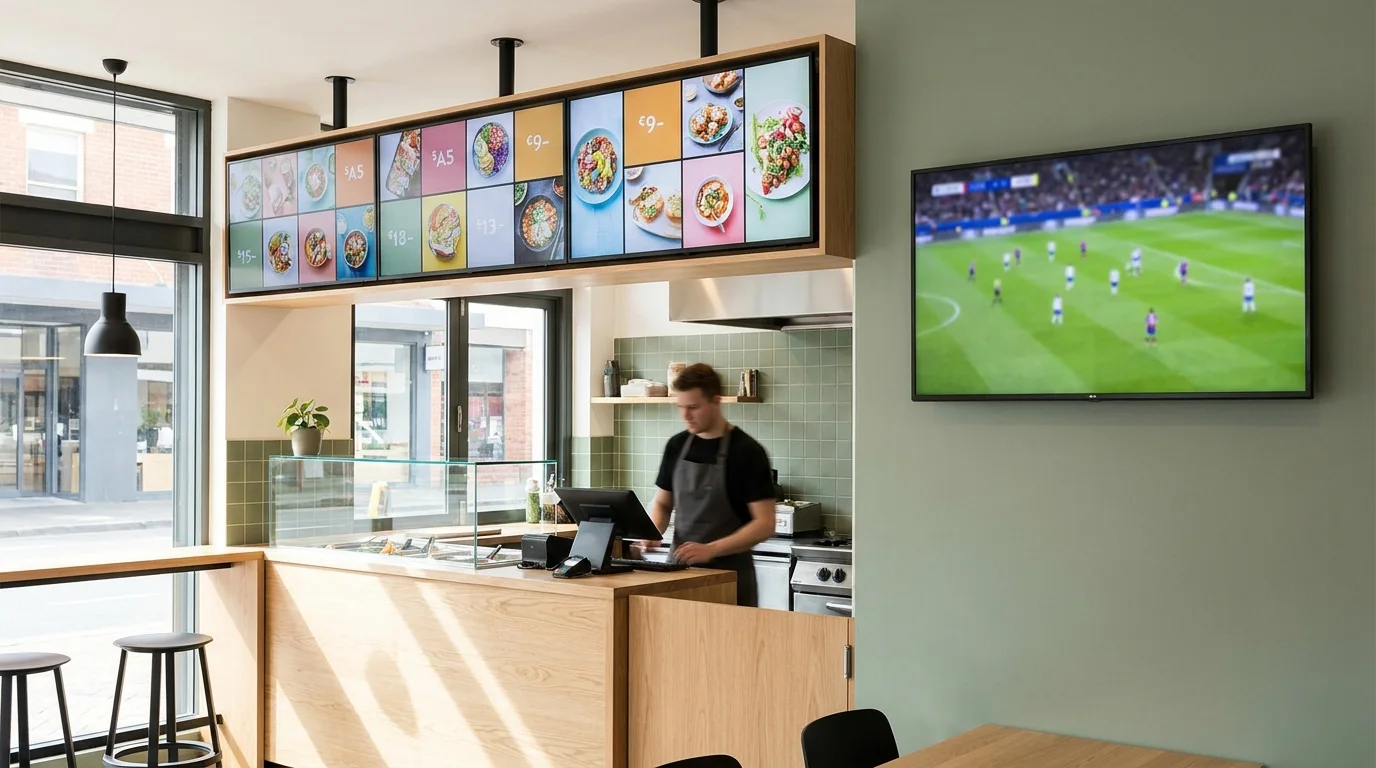

- • QSR and fast-casual — a match corner next to the menu wall
- • Golf sims, dart bars, and eatertainment venues — multi-zone screen control
- • Patios and rooftops — weather-rated, high-brightness commercial outdoor TVs
- • Multi-location bar and restaurant groups — one dashboard across every site
Hardware we recommend
Samsung commercial 4K displays from 43″ to 98″ for viewing positions — 500-nit non-glare panels on 16/7 commercial duty, with the 98″ QM-series large-format panel as the single-screen hero option. Narrow-bezel video-wall tiles (1.7mm bezel-to-bezel, 24/7 rated) for 2×2 and 3×3 game walls. High-brightness window-series displays (46″–75″, 3,000+ nits) for storefront glass, and weather-ready outdoor-series panels (46″–75″, 3,500+ nits, IP56-rated) for patios and rooftops. A CrownTV media player drives the signage layer on each screen over HDMI; the CrownTV Dashboard manages every panel from a browser with per-screen scheduling and scoped permissions. Game feeds stay on the cable, satellite, or streaming receivers you already run — we install the screens, route the inputs cleanly, and keep the signage layer one button away.
See Commercial displays →Where this is used
The game wall
A 2×2 or 3×3 narrow-bezel video wall — or a single 98″ large-format display — as the room's hero moment. Big enough to read the match from the back row, calibrated so the seams disappear.
Perimeter viewing TVs
55″–65″ commercial panels placed by sightline so every seat sees a screen. Mounted flush, cables routed inside the wall, no consumer-TV glare under bar lighting.
Back-bar menu boards
Bar digital signage behind the taps: drink lists, tap rotations, and prices that update from the Dashboard in seconds — not a chalkboard ladder at 4pm.

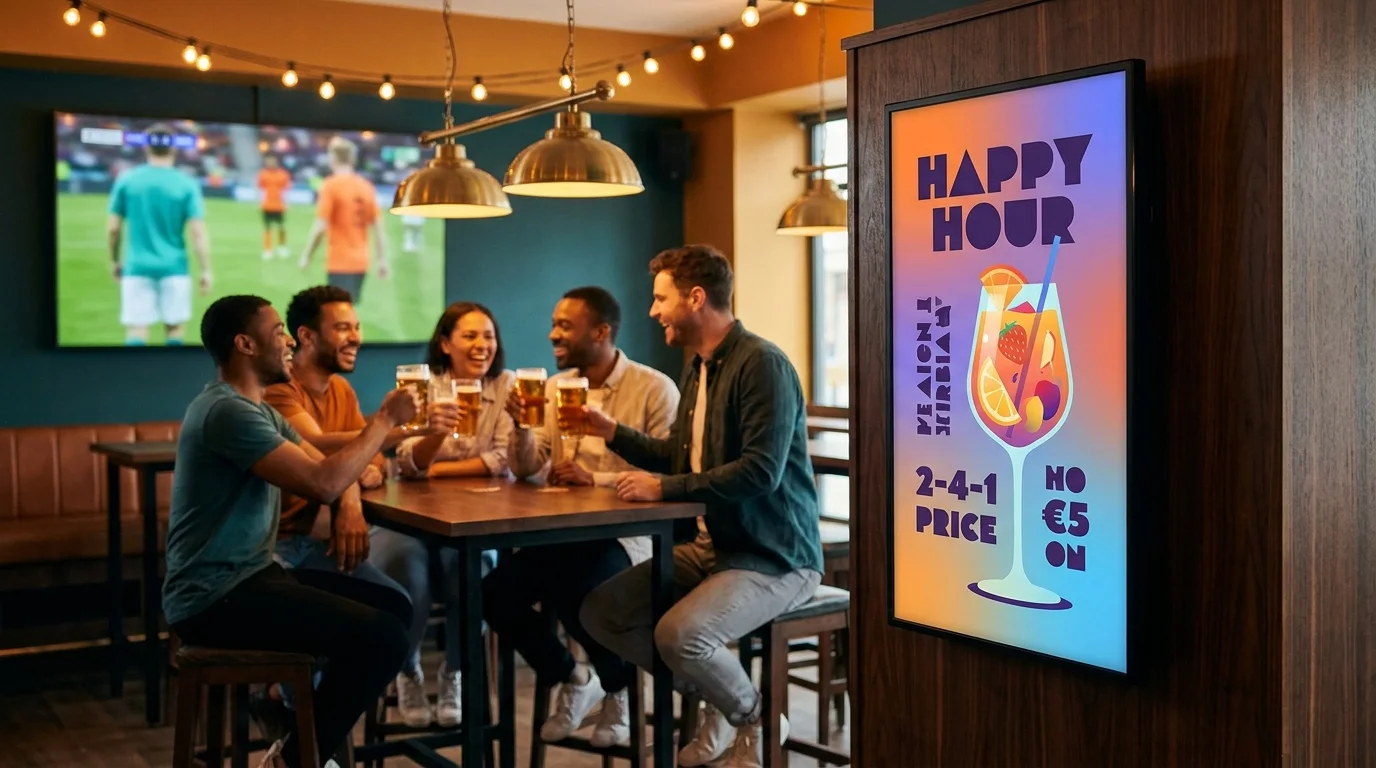

Specials + schedule screens
A promo loop that flips automatically by daypart — lunch board, happy-hour pricing at 4pm, tonight's match schedule at 7pm, late-night menu after 10.
Window and patio screens
High-brightness window displays that stay readable through storefront glass, and IP56 outdoor panels that survive sun, rain, and a hose-down on the patio.
Multi-location groups
Every bar in the group on one Dashboard — group-wide promos pushed centrally, per-location specials owned by each GM, every screen monitored remotely.
Custom quote
Every project is custom-quoted.
Tell us what you're building — all inquiries responded to within 4 business hours.
Frequently asked
Sports bar TV systems — FAQ
What is a sports bar TV system?
A sports bar TV system is the coordinated screen program a bar runs: commercial-grade viewing TVs placed by sightline, a video wall or 98″ large-format display as the game-day hero, and a bar digital signage layer — menus, drink specials, fixture schedules, promos — scheduled per screen from one dashboard. CrownTV ships the displays, mounts, media players, professional installation, and the CrownTV Dashboard as one contract.
How many TVs does a sports bar need?
Plan by sightline, not square footage: every seat should see at least one screen without turning more than about 45 degrees. A neighborhood bar typically lands at 4–6 screens (perimeter TVs plus a back-bar board); a full sports bar runs 8–14 plus a hero wall; large venues go further with zone control. A site survey maps the actual sightlines before we quote — the answer is in the floor plan, not a formula.
What's the best TV for a sports bar?
A commercial display, not a consumer TV. Bars run screens 12–16 hours a day under bright ambient light — consumer panels are rated for a few hours in a dim room, wash out under bar lighting, and their warranties exclude commercial use. CrownTV specs Samsung commercial 4K panels: 500-nit non-glare displays on 16/7 duty for viewing positions, 3,000+ nit window-series for storefront glass, and IP56 outdoor-series for patios.
Do you provide the cable, satellite, or streaming game feeds?
No — game programming stays on the provider account you already run (cable, satellite, or streaming receivers), and sports licensing for commercial venues stays between you and your provider. CrownTV installs and mounts the displays, routes every input cleanly, runs the signage layer through CrownTV media players, and coordinates with your TV or AV provider so each screen switches between the match and the signage loop without remote-hunting.
Can you build a video wall for a bar?
Yes. The most-shipped bar configurations are a 2×2 of 55″ narrow-bezel tiles (≈110″ canvas) and a 3×3 (≈165″) for larger rooms — 1.7mm bezel-to-bezel, 24/7 rated, calibrated as a single canvas. A single 98″ large-format panel is the simpler alternative when one big screen fits the room better than a tiled wall. See the video walls page for configurations and pricing.
Can you install commercial outdoor TVs on a patio or rooftop?
Yes — weather-ready outdoor-series panels (46″–75″, 3,500+ nits, IP56-rated) built for direct sun, rain, and temperature swings, on mounts specced for the structure. A consumer TV in a plastic enclosure doesn't survive a patio season; commercial outdoor hardware is the difference between a patio screen and a patio liability.
What runs on bar digital signage besides the game?
The money layer: back-bar drink menus and tap lists with live pricing, happy-hour boards that flip on schedule, tonight's fixture list by the door, halftime food promos, event and private-hire cards, and a late-night menu after the match. All of it is scheduled by daypart in the CrownTV Dashboard and updates per screen in seconds.
How much does a sports bar TV system cost?
Representative installed ranges: 4–6 screen neighborhood-bar program, $9,500–$18,000; 8–14 screen full bar program, $22,000–$45,000; 2×2 to 3×3 video-wall add-on, $16,000–$36,000. Multi-location groups are custom-quoted with a standardized per-site kit. Hardware, mounts, media players, install labor, content commissioning, and one-year Dashboard included. Quote SLA: 4 business hours.
How fast can a bar be live — and do you install after hours?
A typical single-bar program ships in under a week from site survey, with the physical install completed in one to two after-hours sessions so the bar never loses a service — mounts, in-wall cabling, panel hanging, calibration, and Dashboard configuration before opening. It's the same after-hours discipline CrownTV uses on flagship retail installs.
Do you install sports bar TV systems outside New York?
Yes. CrownTV is New York based and installs nationwide — the same licensed, insured installation crews, the same commercial hardware kit, and the same Dashboard whether the bar is in Manhattan, Miami, or Seattle. Multi-location groups get a wave-by-wave rollout plan with a standardized kit per site.
Quote in 4 business hours
Tell us where the sports bar tv systems go. We'll spec the panel.
Single café or a 200-store QSR rollout — every quote includes hardware, mount, content commissioning, and one year of CrownTV Dashboard. Same project manager from quote to commissioning. Standard turnkey deployment is under one week.
- •Commercial hardware sourcing for indoor, window-facing, and outdoor menu-board panels.
- •Nationwide install coordination, with electrical scope confirmed before the quote is finalized.
- •FDA Section 4205 calorie layouts available when required.
Related solutions
Pair this scope with the rest of the program.
Video walls
2×2 and 3×3 narrow-bezel LCD walls for lobbies and flagships, hybrid 98″/85″ large-format walls for retail moments, and direct-view LED when bezel-zero matters. CrownTV scopes the display class, mount, power, media player, calibration, content commissioning, installation, and support under one quote.
See video wallsDigital menu boards
Get the commercial displays, CrownTV media players, menu design, software setup, installation, and support in one project for cafes, QSRs, food trucks, and drive-thrus.
See digital menu boardsLobby digital signage
Visitor welcome screens, digital tenant directories, conference-room status, security and check-in displays, and brand-ambient lobby video walls — one coordinated program shipped, installed, and managed by CrownTV across corporate towers, hospital lobbies, hotel lobbies, multi-tenant office buildings, and government building entrances.
See lobby digital signage Ready when you are
Ready to spec sports bar tv systems?
All inquiries responded to within 4 business hours.
No commitment. No hard sell.
