Nits vs cd/m² — sounds like a technicality. But here’s the thing: they’re not the same, and treating them as interchangeable can skew your entire display strategy.
Here’s the real issue: brightness isn’t subjective. It’s measurable. It’s quantifiable. And if you’re buying, comparing, or evaluating screens without knowing what these units actually tell you, you’re setting yourself up to make costly miscalculations.
One unit comes from physics. The other’s a simplified label. But both have a place—if you use them correctly. You’re in the right place if you’ve ever glanced at a spec sheet and wondered if 500 nits really means anything. This article clears the confusion without padding it with unnecessary jargon.
Here’s what we’ll break down:
- The clear-cut definitions of nits and cd/m²Why brightness measurement goes far beyond surface-level specs
- How luminance, luminous intensity, luminous flux, and illuminance fit into the picture
- The technical comparison between the two terms
- Why precision matters in display technology
- Where each measurement shows up in real-world applications
We’ll keep it clear, snappy, and technical where it counts—because screen performance depends on it.
What “Nits” and “cd/m²” Actually Measure
Let’s clear up the confusion. Nits and cd/m² (candelas per square meter) both measure the same thing—luminance. That’s the amount of visible light a screen gives off across a square meter of surface. But while the terms are used interchangeably, only one comes from formal measurement standards.
A “nit” is shorthand. It’s a non-SI unit that’s easier to say than “candela per square meter.” Engineers and marketers use it to simplify specs for non-technical readers. But under the hood, it’s the same measurement.
cd/m² is the actual SI unit (Standard International). It describes how much luminous intensity, measured in candelas, hits a square meter of surface area. This matters in any screen where you need to match brightness to ambient light, viewing distance, or content clarity.
Here’s how they connect:
- 1 nit = 1 cd/m²
- Both quantify how bright a screen looks when viewed head-on
- They don’t measure the source of the light—they measure what hits your eyes
So when you see both on a spec sheet, know this: you’re reading the same data. The choice of term depends on context, not conversion.
Why Brightness Specs Alone Don’t Tell the Whole Story
A number on a screen spec sheet doesn’t show you how that display will perform in actual use. Brightness isn’t only about intensity—it’s about how light behaves in context.
That’s why relying on surface-level specs like “500 nits” won’t help you choose the right display for a lobby, an outdoor menu board, or a high-contrast control room.
To make a smart call, you need to understand the building blocks of brightness measurement. Here’s what’s at play:
- Luminance (nits or cd/m²): Measures visible light from the screen surface toward the viewer
- Luminous intensity (candelas): Measures light strength in a specific direction
- Luminous flux (lumens): Total light output from the source
- Illuminance (lux): Light falling onto a surface from an external source
Each plays a role in how a screen appears under different lighting conditions. You might have a screen rated at 700 nits, but without understanding its illuminance or flux, you can’t predict how it will look under bright sunlight or in a dim conference room.
That’s where brightness measurement turns into a performance metric, not a label. You don’t only read the number; you apply it to real use cases.
How Key Light Metrics Define Screen Performance
You can’t measure display brightness in isolation. To make sense of luminance (nits or cd/m²), you have to break down how it connects to other light measurements—luminous intensity, luminous flux, and illuminance. These four values are tied together by physics, not marketing. Each one helps you understand how a display interacts with the space around it.
Luminance (cd/m² or nits)
Luminance defines how bright a surface appears to the human eye. It measures luminous intensity per unit area, expressed in candelas per square meter (cd/m²)—also known as nits.
Here’s the formula that governs luminance:
L = I / A
Where:
L = luminance (cd/m²)
I = luminous intensity (candelas)
A = emitting area (square meters)
In display engineering, luminance matters because it directly correlates to perceived screen brightness. Unlike luminous flux, which measures total light in all directions, luminance reflects directional brightness, which is what a viewer experiences from a specific vantage point.
Higher luminance improves visibility in well-lit environments, prevents washout in outdoor settings, and ensures content clarity across distances. That said, excessive luminance can cause glare or eye strain, so ideal levels vary by use case—retail, corporate signage, and broadcast applications often require tailored targets.
Luminous Intensity (candelas)
Luminous intensity is the foundational unit behind most other brightness metrics. It represents the amount of visible light emitted by a source in a given direction per unit solid angle, measured in candelas (cd).
The formula is:
I = dΦ / dΩ
Where:
I = luminous intensity (candelas)
Φ = luminous flux (lumens)
Ω = solid angle (steradians)
In practice, this metric isolates directional beam strength. It’s critical for evaluating focused light sources, such as projectors, spotlights, or high-beam LED clusters, where light is constrained to a specific spread angle.
For flat-panel displays, this measurement contributes to luminance. A screen may emit high luminous intensity through tightly controlled optics, leading to higher brightness in the center of the viewing cone, but with rapid falloff at wide angles. This influences viewing angle specifications and uniformity performance.
Luminous Flux (lumens)
Luminous flux represents the total quantity of visible light emitted from a source, regardless of direction. Measured in lumens (lm), it’s a summation of all light energy within the visible spectrum produced by a device.
Φ = ∫ V(λ) × P(λ) dλ
Where:
V(λ) = photopic luminosity function
P(λ) = spectral power distribution
λ = wavelength
Luminous flux is particularly useful when evaluating projector lamps, LED modules, or backlighting systems, where overall brightness capacity must match performance demands.
However, it’s not ideal for comparing screens head-on. Two displays with identical lumen outputs may have vastly different luminance levels depending on beam control, diffusion layers, or screen coating. Flux helps you gauge energy output; luminance tells you how it looks.
Illuminance (lux)
Illuminance quantifies how much luminous flux lands on a surface, measured in lux (lx). One lux equals one lumen per square meter.
E = Φ / A
Where:
E = illuminance (lux)
Φ = luminous flux (lumens)
A = surface area (m²)
Unlike the previous three, illuminance doesn’t measure emitted light—it evaluates received light. It’s most relevant when analyzing viewing environments rather than displays themselves.
For example:
- A bright office lobby may register over 500 lux
- Direct sunlight exceeds 100,000 lux
- A dim auditorium may sit around 50 lux
In display planning, ambient illuminance must be factored in to avoid screen washout or insufficient contrast. A display rated at 350 cd/m² may look fine in low-light zones but struggle in high-lux environments without adaptive brightness or anti-glare treatments.
These four terms feed into each other. You can’t pick a display based on nits without weighing how intensity, total output, and environmental light will interact with it. Displays built for controlled environments may not hold up outdoors—brighter screens are often necessary to maintain visibility in high-lux conditions. Once you connect the metrics, you can make smart, situation-specific decisions that go beyond specs and deliver performance that holds up in the field.
Comparing Nits and cd/m² on a Technical Level
While nits and candelas per square meter (cd/m²) are often presented as two separate units, they are mathematically identical. The difference lies not in the measurement but in the context of usage, standardization, and communication across disciplines.
Measurement Equivalence
Both nits and candelas per square meter (cd/m²) are expressions of luminance, defined as the amount of light emitted, transmitted, or reflected from a surface in a specific direction, per unit area.
Mathematically:
1 nit = 1 cd/m²
There is no scaling factor or approximation involved. A nit is an informal term derived from Latin nitere (to shine), historically adopted for simplicity in industries targeting mass-market communication. On the other hand, cd/m² is rooted in the SI system, derived from the base photometric unit candela, and formally tied to steradian-based solid angle definitions.
The formula linking the values is:
L = I / A
L = luminance in cd/m² (or nits)
I = luminous intensity (in candelas)
A = surface area (in m²)
This relationship is used universally in display calibration, light simulation modeling, and photometric analysis tools.
Where Each Term Gets Used
The choice between “nits” and “cd/m²” depends on disciplinary standards, regional preferences, and communication goals.
- Nits appear in consumer-facing industries such as:
- Retail display marketing
- Consumer electronics packaging
- Technical specification sheets intended for general readers
- Product interfaces and OSD menus
- cd/m² dominates in:
- Engineering documentation
- Scientific research
- Standardization documents (e.g., IEC, ISO, CIE)
- Laboratory measurements and light simulations
In the broadcast, medical, and aerospace display sectors, engineers avoid nits due to their non-SI status. This ensures traceability of measurements back to primary standards, which is mandatory in compliance workflows.
In cross-functional teams, both terms often coexist—nits in executive summaries, cd/m² in validation reports.
Functional Implications in Display Testing
Display brightness testing involves precise quantification of luminance. Light measurement devices (like luminance meters and imaging photometers) typically report readings in cd/m², aligning with SI compliance and allowing consistent cross-comparison.
In practice, display performance tests include:
- Peak luminance: Maximum cd/m² achievable under specified drive conditions
- Uniformity mapping: Variation in cd/m² across screen zones
- Black level luminance: Minimum measured luminance to define contrast ratio
- Ambient light compensation: Adjustments based on surrounding lux levels
Firmware and calibration tools may reference nits internally for clarity, but convert to cd/m² when exporting reports.
Engineers must align measurement units across devices and software to avoid data misinterpretation. For example, setting a brightness threshold at “400 nits” in firmware must correspond to 400 cd/m² on the luminance meter used for verification.
Any mismatch, especially when working with HDR certification, factory tuning, or field servicing tools, can lead to failed compliance or perceptible mismatches in brightness behavior.
Use in Documentation and Compliance
Formal documentation across regulated industries adheres strictly to SI unit conventions, which excludes the term “nit.”
cd/m² is mandated in technical manuals, compliance documents, regulatory filings, and scientific publications. Organizations like the International Commission on Illumination (CIE) and IEC Technical Committees define luminance metrics solely in cd/m².
Examples where cd/m² is required:
- EMVA 1288 standard for machine vision cameras
- DICOM Part 14 compliance for medical displays
- HDR10 and Dolby Vision test pattern benchmarks
- EN 55032 emissions testing for digital screens
Technical data sheets often provide both units for clarity, but prioritize cd/m² for official figures. Marketing teams may list “nits” first in summary sections, with the SI equivalent in parentheses.
For government procurement, military-grade equipment, or mission-critical applications, the use of non-standard units like nits is typically rejected outright during vetting.
| Aspect | Nits | cd/m² (Candelas per m²) |
| Definition | Informal term for luminance | SI unit of luminance |
| Unit Classification | Non-SI | SI-compliant |
| Numerical Equivalence | 1 nit = 1 cd/m² | 1 cd/m² = 1 nit |
| Primary Usage Context | Consumer marketing, UX | Engineering, scientific, regulatory |
| Use in Calibration Tools | Sometimes, for user clarity | Standard output unit |
| Presence in Compliance Docs | Rarely accepted | Required |
| Documentation Style | Common in datasheets | Mandatory in specs and reports |
| Display Interface Menus | Frequently used | Rare |
| Cross-functional Communication | Used for clarity | Used for precision |
In short, understanding the two terms doesn’t require conversion—it requires recognizing who’s using them, how, and why. That distinction keeps specs consistent and communication aligned across technical and commercial settings.
How These Measurements Apply in Practice
Luminance metrics aren’t academic—they guide real decisions across professional display environments. From system design to compliance audits, knowing when and where each metric applies lets teams match the right hardware to the job.
Here’s how nits, cd/m², lumens, lux, and candelas show up in operational workflows and procurement specs.

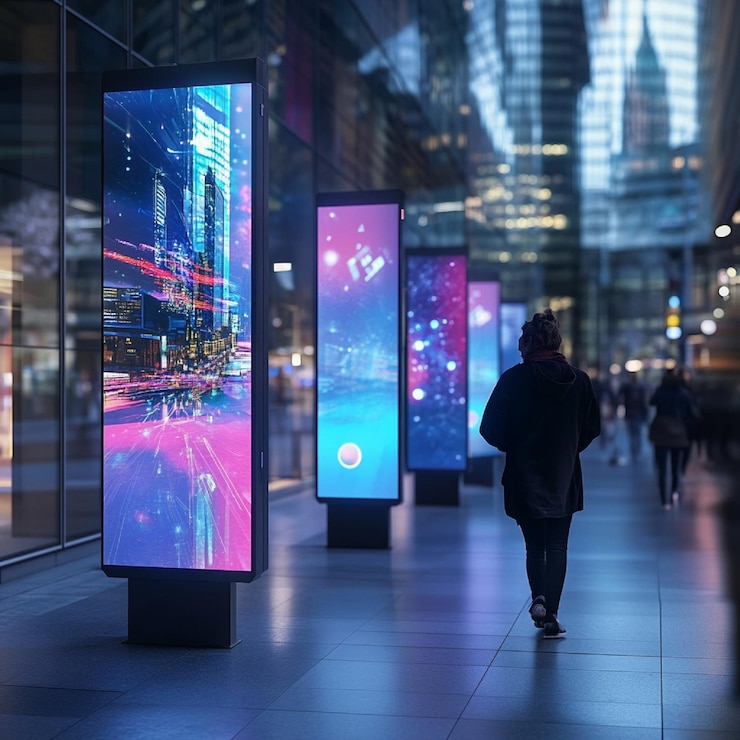

Digital Signage and Commercial Displays
In digital signage, luminance (cd/m² or nits) is the primary specification used to qualify display suitability for the target environment. Whether the installation is in a shopping mall, transport terminal, or corporate atrium, brightness must counteract ambient light to preserve visual clarity and brand consistency.
Indoor signage typically falls in the 300–700 cd/m² range, sufficient for environments under 500 lux. But in high-glare zones such as storefronts with large windows, screens must exceed 1000 cd/m² to maintain image contrast. For outdoor digital signage, luminance requirements start at 2000 cd/m² and may exceed 4000 cd/m² for south-facing installations exposed to direct sunlight.
Procurement specs often mandate minimum luminance with uniformity thresholds (e.g., 80% center-to-corner ratio), which must be measured using certified luminance meters. During commissioning, integrators verify performance under controlled lux levels to assess visibility under both daytime and nighttime conditions.
Content management systems may also incorporate luminance presets tied to time-of-day scheduling or light sensors, ensuring brightness aligns with foot traffic patterns, ambient conditions, and energy efficiency goals.
Broadcast and Post-Production
In broadcast engineering and color grading workflows, cd/m² is the enforced luminance metric for reference and production displays. Grading monitors—especially those certified for HDR mastering—must deliver tightly regulated luminance performance to align with broadcast standards such as Rec. 709, Rec. 2020, and SMPTE ST 2084 (PQ curve).
Professional-grade reference monitors typically support:
- Peak white luminance of 100–1000 cd/m² depending on the workflow (SDR vs HDR)
- Black-level luminance below 0.05 cd/m² for precise contrast control
- Full-field uniformity within ±2–5 cd/m²
Colorists and broadcast engineers rely on spot luminance meters, waveform monitors, and software-based calibration systems to validate compliance with industry specifications. Any deviation in luminance can produce gamma distortion, color inaccuracies, or signal mismatches during live transmission or final output.
Nits are not accepted in broadcast compliance reports, as SI unit enforcement is strict to support inter-vendor compatibility and archival reliability.
Projection Systems and Large Venues
In projection environments, luminous flux (lumens) is the dominant metric, but it must be interpreted alongside screen gain, projection distance, and ambient illuminance to yield an accurate representation of on-screen brightness.
Raw lumen values are often misleading without proper context. For example:
- A 5000-lumen projector on a 1.0 gain screen in a 200 lux lecture hall may deliver sufficient brightness
- The same projector on a larger surface with a 0.8 gain screen in a 500 lux auditorium would result in washed-out visuals
Engineers perform illuminance calculations (in lux) at the viewer plane to determine whether the delivered brightness meets required viewing conditions. Standards such as ISO 21118 and ANSI/NAPM IT7.228 outline testing procedures for flux and illuminance uniformity.
For edge blending and multi-projector systems, designers model uniform illuminance maps to prevent hot spots or underlit zones, using photometric simulation software tied to architectural CAD models.
Outdoor Environments and Harsh Lighting Conditions
Outdoor display design must account for variable ambient illuminance, often ranging from 10,000 lux in shaded areas to over 100,000 lux under direct midday sun. To ensure legibility, screens must deliver luminance values that maintain a usable contrast ratio relative to the surrounding light levels.
The minimum recommended luminance for outdoor daylight readability is typically set at 2000–2500 cd/m², though the actual requirement can spike higher in equatorial or reflective environments. This is calculated using Weber-Fechner contrast visibility functions or task-specific visibility thresholds.
Engineering teams deploy lux meters during site assessments and configure displays with automatic brightness governors (ABG) that adjust output in response to ambient lux levels. These ABG profiles are configured with cd/m² target ranges and response curves, avoiding unnecessary power draw during low-light conditions while maintaining compliance with municipal light pollution restrictions.
Installations that fail to match luminance output with expected lux conditions often suffer from premature panel degradation due to overdriving or user complaints due to poor readability during peak hours.
Medical, Military, and Aerospace Displays
Precision, traceability, and safety drive display requirements in regulated sectors. cd/m² is mandatory for all luminance specifications, with detailed calibration protocols and audit-ready records forming part of the approval process.
For medical imaging, standards such as DICOM Part 14 mandate luminance response curves that ensure grayscale accuracy across all display brightness levels. Diagnostic displays often operate within 350–1000 cd/m² and must be calibrated monthly or quarterly using photometers traceable to NIST standards.
In military and aerospace, luminance specifications are tied to operational use cases:
- MIL-STD-3009 defines minimum and maximum brightness values for avionics, night vision compatibility, and daylight readability
- Cockpit displays must offer luminance ranges from 0.05 cd/m² for night ops to 1000+ cd/m² for full daylight
- Displays must also comply with uniformity, anti-glare coatings, and emissive color accuracy
Failure to comply with these ranges can compromise mission safety, readability, or compatibility with vision-enhancing equipment.
Lighting Design and Architectural Planning
Architectural lighting and environmental planning rely heavily on illuminance (lux) to assess how much light reaches specific surfaces, whether from integrated lighting, natural sources, or emissive screens.
Applications include:
- Backlit signage design, where surface illuminance must meet ADA or wayfinding standards (typically 100–300 lux)
- Workspaces, where vertical and horizontal illuminance targets are enforced by building codes (e.g., EN 12464-1)
- Transit systems, where signage must be readable under shifting natural and artificial lighting conditions
Lighting designers model these environments using photometric IES files, combining source flux, luminaire optics, and reflectivity to generate lux distribution maps.
For embedded displays, the required screen luminance (cd/m²) must be reverse-calculated from desired surface illuminance, accounting for distance, ambient conditions, and reflectivity. This ensures readability, energy efficiency, and visual harmony with surrounding light sources.
Make Brightness Measurements Easy With the Right Knowledge
Understanding the difference between nits and cd/m² isn’t about chasing terminology—it’s about working with precision. Now that you’ve seen how these units operate, where they apply, and how they influence critical specs, you’re better equipped to assess screen performance based on real-world needs, not assumptions.
This clarity doesn’t just help with reading spec sheets. It supports smarter purchasing, smoother integration, and fewer surprises during deployment. When you’re clear on luminance metrics, you take the guesswork out of performance planning.
Here’s a quick recap of what we covered:
- Nits and cd/m² measure the same thing—but only one is SI-standard
- Luminance ties into four key metrics: luminous intensity, luminous flux, and illuminance
- Application environments dictate the correct metric, from signage to surgical displays
- Nits serve consumer communication, while cd/m² runs compliance, testing, and engineering
- Choosing the right display requires aligning all brightness metrics with real lighting conditions
When brightness matters, precision isn’t optional—it’s expected. And when it’s time to put that precision into practice across multiple locations, CrownTV helps make the entire system manageable, scalable, and hassle-free.
