Choosing a display shouldn’t feel like guesswork. Yet the moment screens enter the conversation, options stack up fast. LED. LCD. OLED. Each one claims clarity, brightness, and efficiency. But the way they perform in signage varies more than most expect.
The wrong choice leads to washed-out colors, glare issues, high upkeep, or screens that simply don’t hold attention. The right choice supports your message, sets the tone for the space, and keeps your content sharp without constant tweaks.
You’re in the right place. This guide will compare LED, LCD, and OLED in plain terms, highlight what actually matters in signage environments, and point you toward the most reliable choice for 2025.
How Screen Build Shapes Performance
Every display starts with how light meets the surface. The internal structure sets the picture up, defines brightness, controls color accuracy, and influences how long the screen holds its clarity over time.
LED Structure and Visual Result
LED (light-emitting diode) screens consist of panels made up of clusters of light-emitting diodes. Each diode functions as a pixel element (in direct-view LED) or contributes to the backlight (in LED-backlit LCDs, which is a separate category). For digital signage, direct-view LED is the relevant technology.
Each pixel cluster typically contains red, green, and blue diodes. The distance between these pixels is known as the pixel pitch, measured in millimeters. Smaller pixel pitch = tighter grouping = clearer detail at shorter distances.
LED modules attach to larger cabinets and then scale to full display walls. This modular design influences maintenance patterns and installation flexibility.
Performance Outcomes:
- Brightness remains strong in areas with overhead lighting or sun exposure due to high nit level output.
- Color accuracy depends on diode binning quality and calibration practices.
- Viewing distance tolerance is broad; clarity improves as distance increases.
- Heat distribution impacts diode longevity; better power management extends service life.
Typical Use of LED screens: Large-format signage, outdoor signage, atriums, storefront windows, transit environments.
LCD Structure and Visual Result
LCD (liquid crystal display) panels operate by filtering a uniform backlight through layers of liquid crystals, color filters, and polarizers. The crystals shift alignment to regulate how much light passes through each pixel.
The backlight is either edge-lit or full-array:
- Edge-lit uses LEDs placed around the panel edges, directing light inward.
- Full-array positions LEDs directly behind the display for tighter control of brightness zones.
The panel type of this LCD technology determines motion handling, color stability, and viewing angle:
| Panel Type | Properties | Typical Visual Behavior |
| IPS | Stable color and wide viewing angle | Minimal color shift at off-axis angles |
| VA | High contrast ratio | Deeper blacks, but a narrower viewing angle |
| TN | Faster pixel transitions | Lower color accuracy |
Performance Outcomes:
- Consistency in close-up viewing environments.
- Text and UI elements remain sharp due to controlled pixel grid alignment.
- Brightness uniformity varies based on backlight architecture.
- Reflective coatings help reduce glare, but external light still influences readability.
Typical Use of LCD screens: Menu boards, service counters, corporate displays, front desk signage, and indoor retail.
OLED Structure and Visual Result
OLED (organic light-emitting diode) technology uses organic layers that emit light when current passes through. Each pixel is self-luminous, meaning no external backlight is required. This allows individual pixels to switch off completely, producing extremely dark black levels.
The display stack is thin, typically consisting of:
- Substrate
- Thin-film transistors (TFTs) control electric current flow
- Organic emissive layers
- Encapsulation layer
Color accuracy is shaped at the sub-pixel level (RGB or WRGB, depending on manufacturer), influencing both saturation and long-term uniformity.
Performance Outcomes:
- Contrast is significantly stronger compared to LED and LCD due to pixel-level light control.
- Color volume remains high across a wide range of brightness settings.
- Viewing angles are wide with minimal shift.
- Panel lifetime depends on how frequently high-brightness content runs; sustained peak output can cause wear in organic compounds.
Typical Use of OLED screens: High-design interiors, luxury retail, museum installations, premium signage placements, hospitality environments with controlled lighting.
Where Each Digital Signage Screen Type Shines
Environment drives performance. Light levels, viewing distance, and content style set the demands. Match the build to the use case, and you set the project up for success.
LED use environments
LED operates as a modular, emissive display system. Each module contains clusters of diodes arranged into pixel groups. These modules lock into larger cabinets, and cabinets stack into full display walls. That pattern influences installation planning, service access, and long-term stability, similar to how electronic devices scale from component to finished unit.
LED strength becomes clear in spaces with bright sunlight or direct sunlight, where luminance output must remain visible across distance. This is why LED often supports advertising billboards, open façades, and high traffic areas such as transit concourses and retail stores. When calibrated properly, LED preserves image quality across large surfaces, similar to premium high-end TVs, but engineered for signage duty cycles.
Key Technical Variables That Influence Placement
- Pixel Pitch: Smaller pitch supports closer viewing. Larger pitch supports further viewing distances. Incorrect pairing leads to visible pixel separation.
- Nit Output and Thermal Design: High luminance levels require careful handling of power distribution and heat flow. This affects electrical energy usage over long operating cycles.
- Processing and Calibration: Consistent diode binning and periodic calibration maintain uniformity and prevent color drift across wide display areas.
- Viewing Angle: Diode lens shaping affects how luminance behaves off-axis. Diffusion caps can stabilize appearance from multiple vantage points.
Environments That Support LED Performance
- Exterior signage systems along open visibility corridors
- Large indoor video walls requiring seamless scale
- Atriums and vestibules with elevated ceilings and broad sight lines
- Street-facing displays are designed to display content that attracts movement
LED implementation remains cost-effective when scaled correctly, because module-level servicing reduces full-panel replacement frequency. Looking ahead, advanced technologies in diode efficiency and driver circuitry will influence future trends in how LED networks balance brightness output and operating lifespan.
LCD use environments
LCD panels rely on backlight traversal through layered liquid crystal arrays. Performance depends on panel type, backlight design, and optical coatings. Because pixels are arranged in a fixed grid with definable subpixel structure, digital signage LCD displays maintain sharp text clarity at closer ranges.
Key Technical Variables That Influence Placement
- Backlight Architecture: Full-array systems produce more uniform brightness than edge-lit systems. Local dimming zones allow selective brightness shaping but may introduce halo effects if the zone count is low.
- Panel Technology
- IPS: Stable color profile and wider off-axis readability
- VA: Higher perceived contrast, but can shift tone at angles
- TN: Faster pixel response, limited color stability for signage applications
- Reflective and Diffusion Layers: Anti-glare matte coatings diffuse overhead lighting. Gloss layers maintain perceived contrast but can bounce light back into the viewer’s eye. Selection depends on ceiling height, fixture type, and wall orientation.
- Thermal and Duty Cycle Ratings: LCDs placed in portrait orientation or continuous-use environments require panels rated for 24/7 cycles and high internal heat tolerance.
Environments That Support LCD Performance

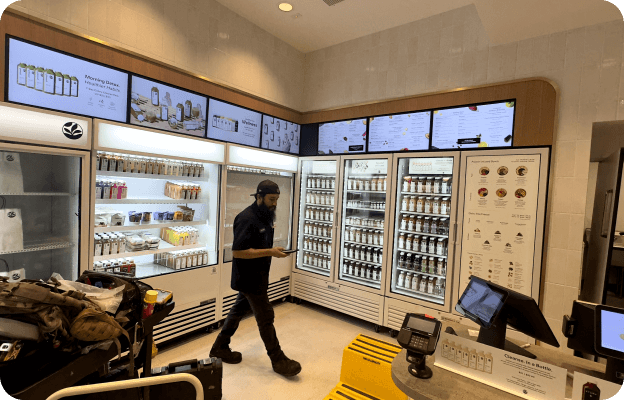

- Digital menu boards above service counters
- Corporate meeting entry panels and directories
- Multi-screen tiled video walls requiring exact alignment
- Retail shelving systems with close-range product messaging
OLED use environments
OLED uses self-emissive organic layers, forming pixels that produce light independently. This grants precise pixel-level luminance control. Black levels approach full absence of light, which intensifies contrast when ambient light is limited.
The structure of OLED technology is thin and flexible, but requires protective housing and controlled installation to avoid panel strain or pressure distortion.
Key Technical Variables That Influence Placement
- Ambient Light Levels: OLED excels where lighting is moderated. Strong overhead lighting can flatten contrast. A controlled ambient environment allows the pixel-level luminance control to play out clearly.
- Content Composition: High-contrast motion graphics, image close-ups, and color-sensitive brand elements show a strong presence. Static high-brightness screens may accelerate wear, so scheduling and pixel-shift tools matter over multi-year operation.
- Viewing Distance: Close and mid-range viewing maximizes perceived sharpness. Gradients and shadow details become more visible at these ranges.
- Panel Handling and Mounting: OLED panels require rigid support structures to prevent flex or bowing. Edge handling and technician procedure influence long-term picture uniformity.
Environments That Support OLED Performance

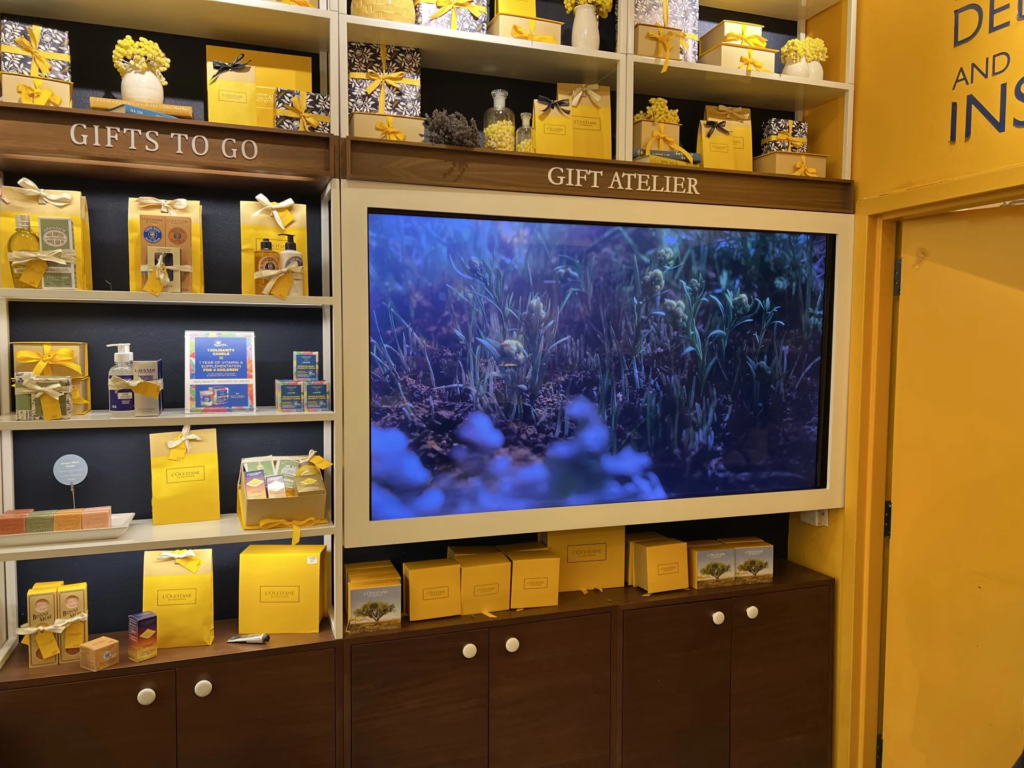

- Luxury retail storefront interiors with spotlight control
- Museum or gallery walls hosting artful content cycles
- Hospitality reception zones where aesthetic detail matters
- Executive or boardroom presentation feature walls
Results by scenario
Use the following matrix to guide alignment between the environment variable and the screen technology. This avoids assumptions and sets selection up based on measurable criteria rather than preference.
| Operational Scenario | LED Fit Rationale | LCD Fit Rationale | OLED Fit Rationale | Notes on Selection Control |
| High-brightness environment with storefront glass | LED maintains visibility through glare | LCD can function with a strong anti-glare stack | OLED benefits only if the lighting is controlled | Match nit targets to daytime peak light levels |
| Large-format wall with long viewing distance | LED scales size without seams | LCD needs tiled alignment and bezel matching | OLED offers seamless edge units only in limited panel sizes | Choose based on distance vs. image continuity priorities |
| Close-range informational or menu display | LED requires a tight pitch to avoid pixel grain | LCD maintains text structural clarity | OLED enhances color presence at short distances | Evaluate how frequently content updates and brightness patterns rotate |
| Brand-driven experiential space | LED produces visual impact at scale | LCD supports structured content layouts | OLED produces refined contrast and tonal control | Select based on ambient light design and content tone |
| Continuous-use signage network with varied locations | LED modules ease field repairs | LCD balances cost, duty cycle rating, and maintenance | OLED requires content pacing strategies to preserve uniformity | Map the total cost of ownership across 3–5 years |
Pricing and Upkeep Patterns That Matter
Pricing extends beyond the initial screen purchase. The way each display type handles power consumption, servicing, installation, and part replacement influences cost over the long term. The right selection weighs upfront investment against operational stability and maintenance access.
LED cost profile and upkeep behavior
Direct-view LED typically carries a higher upfront investment due to diode density, module construction, and power distribution hardware. Installation planning can add cost when walls need structural reinforcement or precise alignment.
Once deployed, upkeep focuses on module-level servicing rather than panel replacement. If a pixel cluster fails, technicians replace the affected module rather than removing the entire display section. This supports incremental repair spending over full panel swaps.
Cost-related factors:
- Pixel pitch directly influences unit cost
- Higher nit output raises power draw
- Calibration and color uniformity sessions should be scheduled at set intervals
- Module failures can be serviced without screen-wide downtime
Typical long-term model: Higher upfront, steadier maintenance spending year to year.
LCD cost profile and upkeep behavior
LCD generally enters the market at a lower upfront price per screen. The cost shifts based on panel type, backlight architecture, brightness rating, and duty cycle certification.
Maintenance often centers on panel replacement rather than part-level repair. If a panel develops burn-in artifacts, backlight inconsistency, or pixel line defects, the typical approach is a full panel swap.
Cost-related factors:
- IPS and full-array units cost more but maintain better visuals in signage conditions
- Anti-glare optical stacks can increase pricing but reduce readability issues
- 24/7 duty-rated chassis prevent thermal stress failure and extend operational lifespan
- Video walls require bezel alignment tools and periodic recalibration
Typical long-term model: Lower upfront, periodic full-unit replacements depending on usage cycle.
OLED cost profile and upkeep behavior
OLED enters at a premium upfront cost, tied to self-emissive organic material production and panel uniformity controls. Installation typically demands careful handling and surfaces designed to distribute weight evenly across the panel.
Upkeep focuses on content scheduling and brightness management to preserve pixel condition. High static brightness content can accelerate wear across certain color compounds, so pixel shift rotation and brightness patterning help maintain uniformity across longer deployment periods.
Cost-related factors:
- Requires a controlled lighting environment to maximize value
- Content design influences lifespan
- Panel replacements are typically whole-unit events
- Slim housing may require specialized mounts
Typical long-term model: Higher upfront and ongoing performance-preservation management.
Cost and Upkeep Comparison Summary
| Display Type | Initial Investment (USD) | Typical Maintenance Pattern | Cost Behavior Over Time |
| LED | Higher | Module-level replacement and periodic calibration | Stabilizes after installation |
| LCD | Lower to mid-range | Panel replacement when failures occur | Fluctuates based on failure intervals |
| OLED | Higher | Content-based wear management and full-panel replacements | Tied to usage conditions and brightness cycles |
The goal is not to chase the lowest price, but to align investment with the conditions the display will face over its deployment lifecycle. Proper planning upfront reduces corrective spending and preserves image performance year after year.
Which Display Type Performs Best in 2025 Signage
Based on the structural differences, placement behaviors, and upkeep patterns we covered earlier, the strongest signage results in 2025 come from aligning display type to viewing conditions and content intent. No technology operates as a universal answer.
Performance depends on how the screen meets its environment and how the content interacts with that screen’s light output and pixel structure.
LED performance outlook
For 2025 signage planning, LED performance is shaped by driver circuitry efficiency, diode composition, and image processing pipelines. The clarity of large-scale LED output depends increasingly on grayscale handling at low brightness levels, not peak luminance. Modern LED control systems must maintain luminance linearity down to low-output ranges to prevent crushed shadows or blocky gradients in brand imagery.
Another key performance factor is temporal dithering control. Lower-quality LED processors rely on dithering to approximate grayscale steps, which can introduce flicker artifacts when filmed by mobile devices. Environments where digital screens appear in user-generated content workflows require flicker-free driver ICs and high-frequency PWM dimming.
In 2025, LED is selected for signage that:
- Requires visibility from variable viewing distances
- Uses motion-driven promotional loops rather than fine-grain UI elements
- Operates in environments where light competition is high
- Demands scalable physical dimensions without bezel interruptions
The performance edge comes from processing precision and calibration stability, not brightness alone.
LCD performance outlook
LCD’s strength in 2025 signage is tied to panel uniformity coefficients, color stability across temperature shifts, and backlight waveform control. Because LCD signage often displays text, pricing structures, and navigational layouts, gamma stability across wide operating temperatures becomes decisive. Panels with weak gamma tracking will show washed midtones or inconsistent text clarity, depending on the elevated heat within the enclosure.
The internal TCON (timing controller) architecture influences refresh pacing, input jitter tolerance, and frame sequencing. In signage scenarios where content updates frequently or responds to scheduling triggers, a stable TCON pipeline eliminates micro-latency jumps that can otherwise cause motion smear on scrolling text or menu transitions.
In 2025, LCD performs best when the signage system requires:
- Predictable visual output across long duty cycles
- Readable fine text from close range
- Layered information hierarchies (menus, schedules, product specs)
- Tight energy efficiency across large indoor screen networks
Its advantage lies in panel stability and readability rather than expressive color behavior.
OLED performance outlook
OLED’s performance trajectory in 2025 revolves around material lifespan balancing, sub-pixel compensation mapping, and peak brightness shaping algorithms. Since OLED panels rely on organic emission layers, brightness and color decay at different rates across the red, green, and blue sub-pixels. Modern OLED control systems generate compensation maps to distribute wear and maintain panel uniformity.
The APL (Average Picture Level) of content directly influences lifespan and uniformity. Content strategies that vary tonal regions and luminance bands over time improve OLED longevity without visible degradation. In signage environments that emphasize brand tone, ambiance, or experiential immersion, OLED showcases smooth gradients and depth separation that LCD and LED cannot replicate.
In 2025, OLED is selected when signage demands:
- Precision tonal control and atmospheric presence
- High color volume across mid-brightness ranges
- Minimal glare environments
- Close-to-medium viewing where visual nuance is noticed
Its advantage depends on content curation and controlled lighting, not on general-purpose deployment.
Bringing the Selection Together
The choice in 2025 resolves into operational alignment rather than broad performance claims:
| Requirement | Best Technical Match | Reasoning Principle |
| Long-distance impact and dimensional scale | LED | Emissive architecture holds structure over wider fields and size ranges. |
| High-frequency information layouts and network consistency | LCD | Pixel grid architecture sustains text precision and repeatable output. |
| Atmosphere-led visual impression and tonal depth | OLED | Self-emissive pixels provide granularity in contrast transitions. |
The strongest signage outcomes appear when viewing distance, ambient light control, content behavior, and maintenance access are evaluated before procurement. Display selection is not a single-item choice — it is a system decision involving power design, thermal expectations, refresh behavior, calibration workflows, and service planning across years of operation.
Choosing the Right Display Requires Technical Alignment
Every display type can perform exceptionally when placed in the environment it was built for. LED displays deliver presence when distance and brightness set the priority. Digital displays serve their purpose when their operating conditions are clearly defined. LCD maintains clarity when information density matters. OLED shapes visual tone where atmosphere and detail influence the space, producing light at the pixel level through its own light emission.
The difficulty is not selecting a screen. The difficulty is matching screen behavior to viewing conditions, lighting conditions, duty cycles, mounting constraints, and content pacing. Screens showing static images for extended periods require different planning than screens showing motion-heavy branding loops.
LED displays typically perform strongly across a wide range of outdoor displays. LCD excels in indoor displays where text clarity and structured layouts matter. OLED produces vibrant displays with refined contrast and vibrant color reproduction in controlled spaces.
Many projects assume right display technology can be chosen from specification sheets alone. Yet picture quality shifts depending on thermal load, viewing angle geometry, and placement height. The various display technologies respond differently to bright environments, where automatic brightness adjustment can support readability. LED Technology offers scale and presence, while LCD sustains visual quality at close range. OLED provides precise control of contrast and tone.
Operating cost must also be considered. Power draw influences energy consumption, and selecting a display that can save energy during extended uptime helps reduce energy consumption. This directly affects operational costs, especially across multiple screens.
Signage systems with scheduling controls and remote management workflows simplify upkeep across networks. Panels that remain energy efficient over long duty cycles better suit large distributed deployments. A specialized digital signage provider evaluates:
- Sight line paths and viewing distance
- Ambient and artificial lighting behavior over the day
- Duty cycle expectations and heat load inside enclosures
- Content patterns and how they interact with pixel structure
- Total cost of ownership across service years, not purchase day
A company like CrownTV supports this evaluation by mapping screen characteristics to real usage conditions, then recommending the display type that will hold clarity, stability, and visual presence over time. This prevents overspending and reduces corrective replacements later.
This advisory process is similar to how larger networks choose computer monitors for workspaces: operational context leads selection, not preference.
Why CrownTV Aligns Well With All Display Technologies
CrownTV’s system is built to operate across LED, LCD, OLED, projection-based signage, and emerging emissive formats. The platform does not lock users into one display category. Instead, it adapts the software workflow, content scheduling, and media player output to the strengths of the screen in use, supporting high-quality images and cost effectiveness across deployments.
Key attributes that support this flexibility:
- Unified Display Management Software: The dashboard manages multiple screen types from one interface, so mixed environments stay synced, organized, and simple to update.
- Adaptive Media Player Hardware: The CrownTV’s player scales output formatting, resolution handling, and content playback profiles to match each display type’s performance envelope.
- Screen-Agnostic Installation Planning: The installation and rollout team evaluates mounting structure, ambient light exposure, enclosure ventilation, and signal distribution routing to set each screen up to deliver stable, long-term performance.
- Content Calibration Support: Brightness tuning, color alignment, and playback sequence configuration are adjusted based on the screen’s imaging behavior.
- Lifecycle and Service Mapping: Maintenance is planned according to the screen’s operational profile. LED module servicing patterns differ from OLED compensation cycles and LCD panel rotation schedules.
The result is a cohesive signage network where every screen performs the role it was installed to handle — without forcing a single display technology across every space. Instead of guessing the “best screen,” you select the right screen for your environment, your content, and your operational demands. That is what produces strong signage performance in 2025 and beyond.
Digital Signage Display Decisions Made Clear with CrownTV
Choosing the right display begins with conditions, not preference. Light levels, viewing distance, content pacing, and operational duty shape how a screen performs once it’s mounted on the wall. When those variables line up with the structural strengths of LED, LCD, or OLED, signage looks intentional, stable, and well-integrated into the environment.
You’ve seen how each display type behaves. LED carries scale. LCD maintains clarity for close viewing. OLED introduces tonal refinement where visual presence matters. None is “better” on its own. Each succeeds when placed in the space it’s suited for.
This is where working with a professional signage partner removes guesswork altogether. CrownTV aligns screen selection with lighting audits, mounting constraints, content cycles, thermal conditions, and long-term service planning. The system, hardware, and installation support work as one process — so the display performs as expected on day one and continues to perform year after year.
Key outcomes you gain with the right partner
- Screens chosen based on measured viewing conditions, not assumptions
- Content mapped to the screen’s imaging strengths
- Software that treats mixed hardware environments as one network
- Hardware that adapts playback to each display’s optical behavior
- Installation and rollout are designed to prevent future corrective work
A signage project succeeds when the screen, the content, and the environment support each other. That alignment does not happen by accident. It happens through planning.
